UC-8630A-T

Moxa UC-8630A-T
See any errors on this page?
Please let us know.

Moxa Arm Cortex-A72 dual-core 1.5 GHz 64-bit box computers with rich set of interfaces, M.2 M key, M.2 E key and mPCIe slots
ESP Price: $1,111.12
Contact us for Partner Pricing. (more info)


Free Shipping
Availability: Usually Ships in 24 Hours; However, Due To Shortages Contact Sales to Verify
Product Code: UC-8630A-T

Description Technical Specs Drivers & Downloads

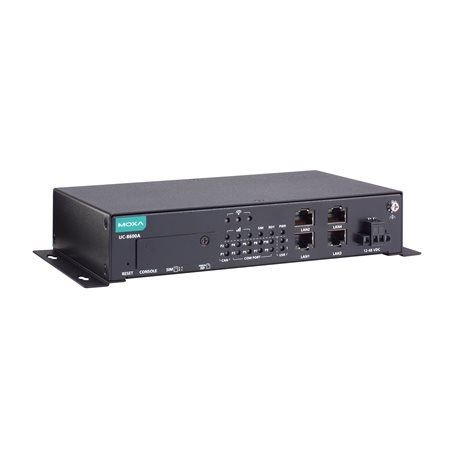

The UC-8600A Series Arm-based box-type computing platform is designed for embedded data-acquisition and edge-computing applications.

The UC-8600A comes with four 10/100/1000 Ethernet ports, eight RS-232/422/485 serial ports, four DI/DO channels, two CAN ports, enabling robust connectivity for a wide variety of field devices. The UC-8600A also supports storage expansion via an M.2 M key slot for SSD and a Micro SD card slot. In addition, a wireless expansion slot that supports Wi-Fi 6E and cellular modules enables reliable wireless communication for remote applications. The versatile communication and expansion capabilities of the UC-8600A Series facilitates efficient deployment in diverse industrial environments.
Features
  • Arm Cortex-A72 dual-core 1.5 GHz processor
  • 4 auto-sensing 10/100/1000 Mbps Ethernet ports
  • 8 RS-232/422/485 serial ports
  • 2 CAN ports (CAN 2.0A/CAN 2.0B) with 3 kV isolation protection
  • M.2 M key SSD slot and Micro SD socket for storage expansion
  • Supports cellular and Wi-Fi 6E via an expansion slot
  • Moxa Industrial Linux with 10-year superior long-term support
  • EN 18031-1 compliant wireless cybersecurity
  • Compliance with IEC 62443-4-2 Security Level 2 requirements
  • -40 to 75°C operating temperature range (-40 to 70°C with cellular module enabled)
