PPC-WLAN-D1

Advantech PPC-WLAN-D1
See any errors on this page?
Please let us know.

Alternative Views:
Advantech M.2, WiFi6 +BT5.2, 2T2R,w/Antenna, MiniP
ESP Price: $85.00
Contact us for Partner Pricing. (more info)


Free Shipping
Availability: Usually Ships in 24 Hours; However, Due To Shortages Contact Sales to Verify
Product Code: PPC-WLAN-D1

Description Technical Specs Drivers & Downloads

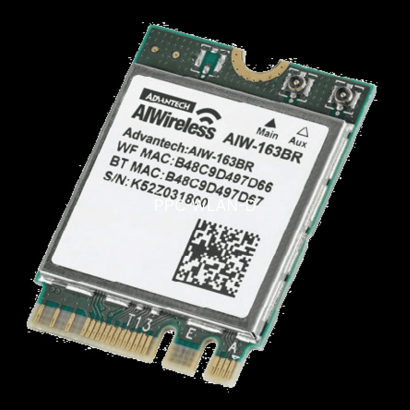

IEEE 802.11ax/ac/a/b/g/n +Bluetooth 5.2 M.2 2230 (A-E Key) Card
Features
  • IEEE 802.11ax/a/b/g/n + Bluetooth 5.2
  • Supports 2.4 GHz: 2.412 ~ 2.484 GHz , 5 GHz: 4.915 ~5.925GHz
  • MU-MIMO, 2Tx/2Rx
  • Operating temperature: 0 ~ 70 °C (32 ~ 158 °F)

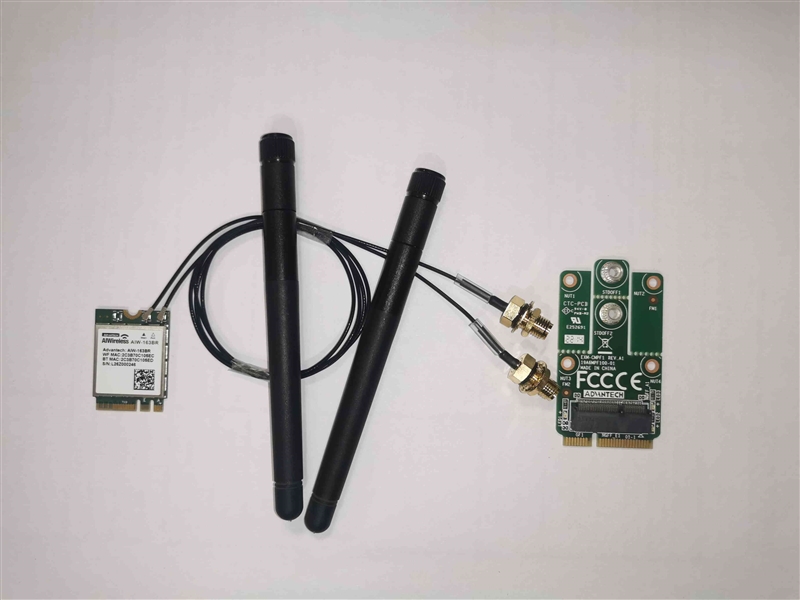

  • With M.2 (E Key) to Mini PCIe Adapter (for PPC-WLAN-D1)
  • With 2.4/5G Hz dipole Antenna and 425 mm Coaxial Cable
