PPC-419-RX6A

Advantech PPC-419-RX6A
See any errors on this page?
Please let us know.

Alternative Views:
Advantech 19" PPC w/Intel x6425E, Res.
ESP Price: $1,695.00
Contact us for Partner Pricing. (more info)


Free Shipping
Availability: Usually Ships in 24 Hours; However, Due To Shortages Contact Sales to Verify
Product Code: PPC-419-RX6A

Description Technical Specs Drivers & Downloads

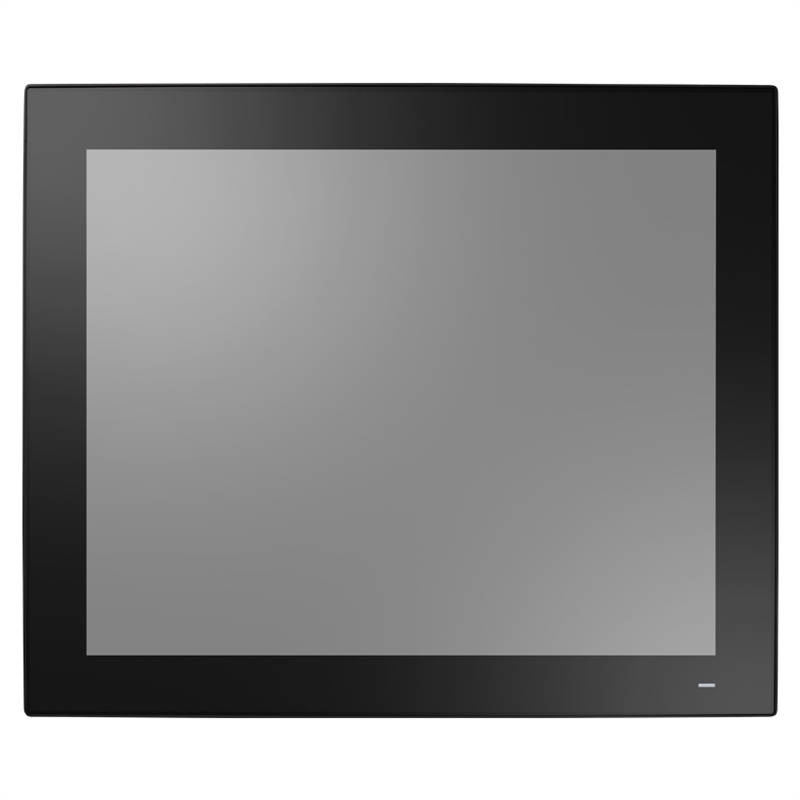

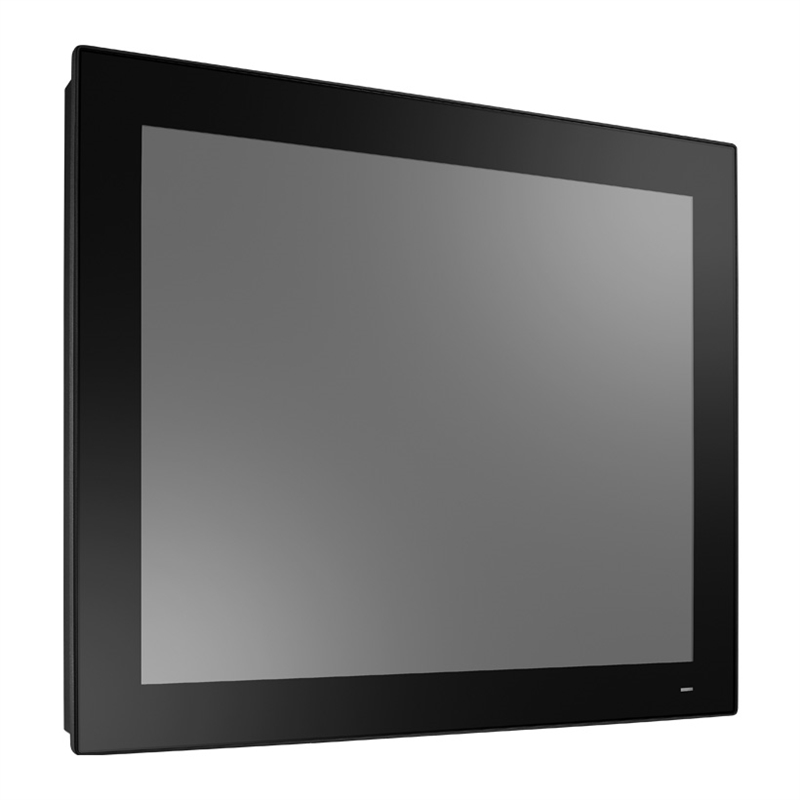

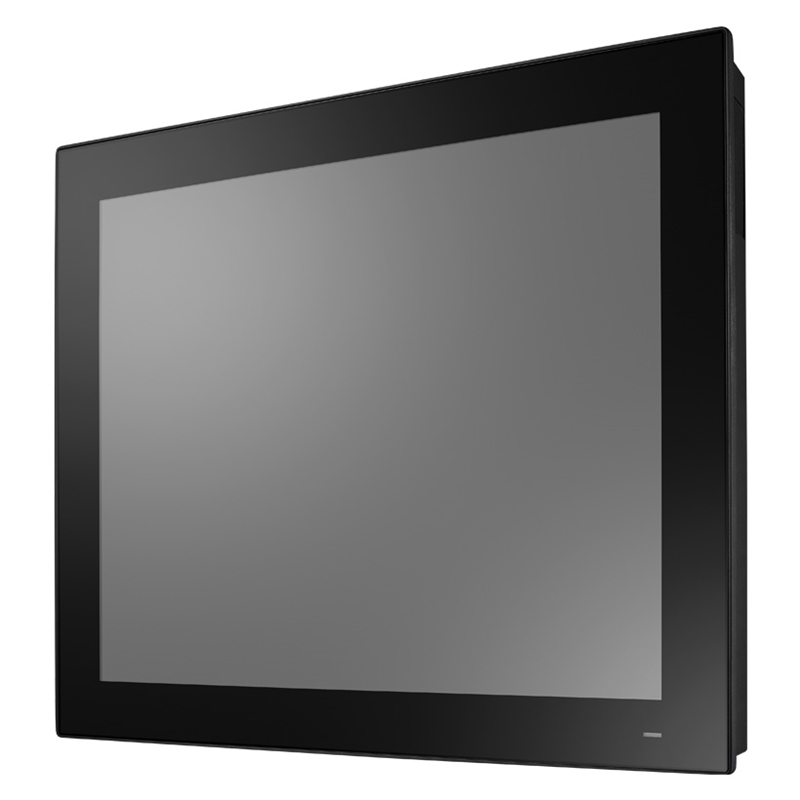

The PPC-419 is a 19" fanless panel PC equipped with a high-performance Intel® Atom™ x6425E quad-core, 2.0 GHz, processor that supports both a wide operating temperature

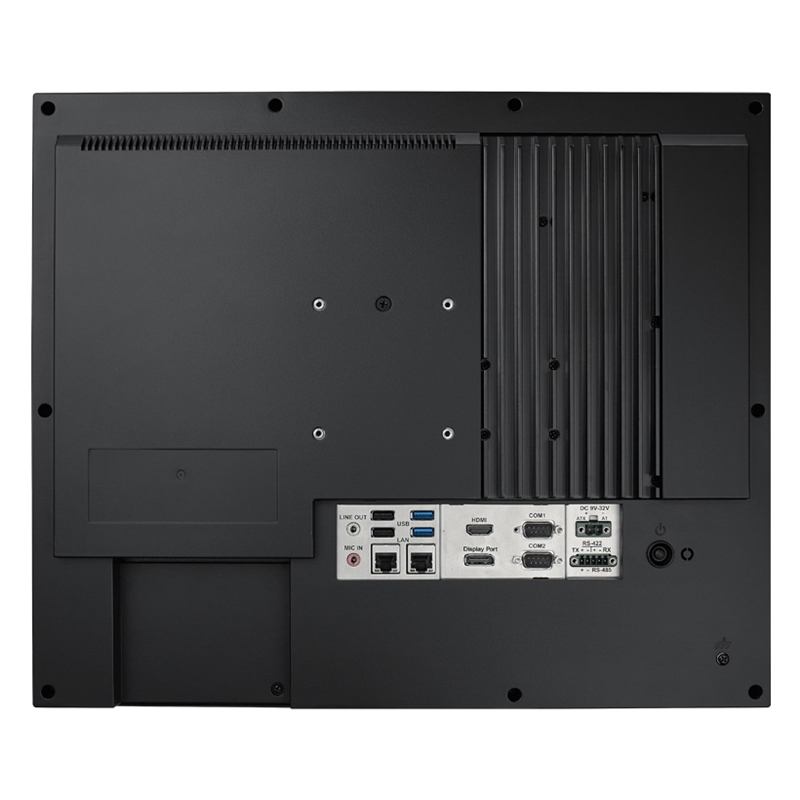

range (-20 ~ 60 °C) and wide power input range (9 ~ 32 VDC). The provision of multiple I/O, including 4 x COM, 2 x USB 3.2, 1 x isolated RS-422/485, and dual Intel® Gigabit
Ethernet, ensures easy integration and connectivity. With the inclusion of 1 x PCI/PCIe expansion slot, the PPC-419 can be integrated with fieldbus protocols or proprietary cards
for increased application potential.
Features
  • 19" SXGA TFT LCD with resistive (default)or projected capacitive(by request) touchscreen
  • Intel® Atom™ x6425E quad-core, 2.0 GHz processor
  • Fanless, slim design
  • Supports 1 x 2.5" SATA and 1 x M.2 B key slot for expansion
  • 1 x PCI/PCIe x1 expansion slot
  • Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
  • Wide range DC support (9 ~ 32 VDC)
  • 1 x isolated RS-422/485 with automatic flow control
  • Dual 2.5GBASE-T Ethernet supports Time-Sensitive Network(TSN) technology
