PCI-1784U-B

Advantech PCI-1784U-B
See any errors on this page?
Please let us know.

Alternative Views:
Advantech 4-Axis Quadrature Encoder & Counter Card
ESP Price: $410.00
Contact us for Partner Pricing. (more info)


Free Shipping
Availability: Usually Ships in 24 Hours; However, Due To Shortages Contact Sales to Verify
Product Code: PCI-1784U-B

Description Technical Specs Drivers & Downloads

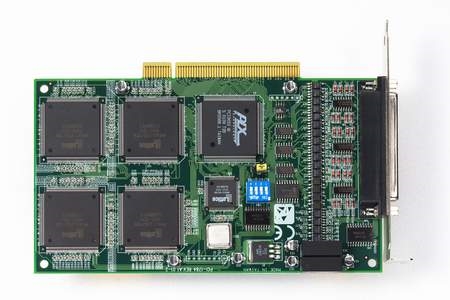

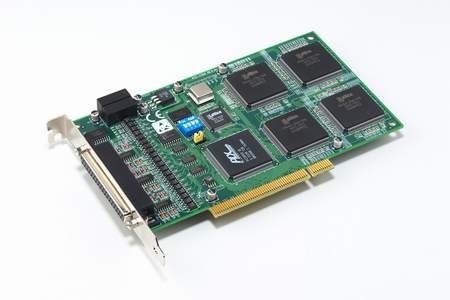

PCI-1784U is a 4-ch encoder counter universal PCI card. It includes four 32-bit encoder counters, 8-bit timer with multiple range time-base selector, 4 isolated digital inputs, and 4
isolated digital outputs. Its flexible interrupt sources are suitable for motor control and position monitoring.
Features
  • Four 32-bit up/down counters
  • Single ended or differential inputs
  • Pulse/direction and up/down counter
  • x1, x2, x4 counts for each encoder cycle
  • Multiple interrupt sources for precision application
  • 4-stage digital filter with selectable sampling rate
  • On-board 8-bit timer with wide range time-base selector
  • Optically isolated up to 2,500 VDC
  • 4 isolated digital input
  • 4 isolated digital output
  • BoardID™ switch
