PCI-1780U-B

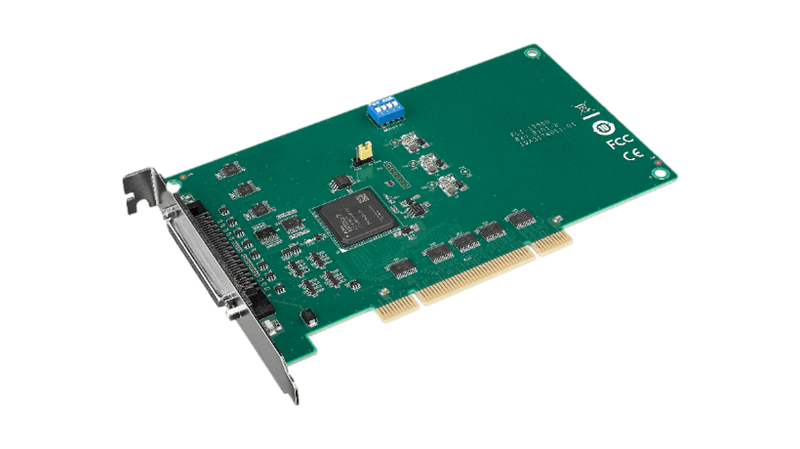

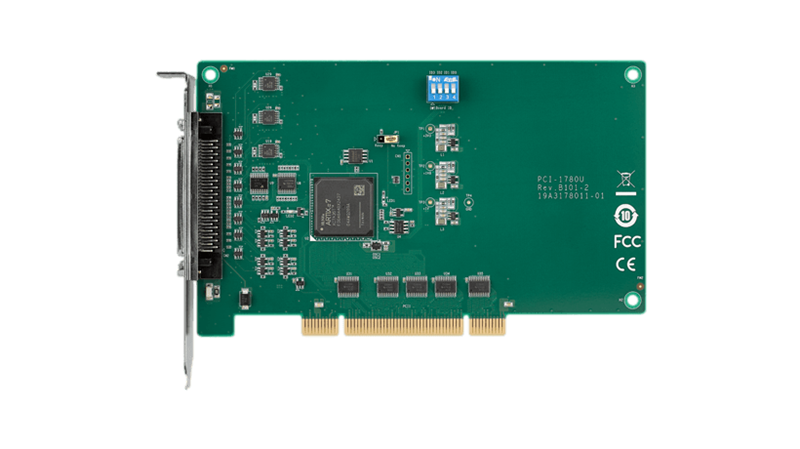

Advantech PCI-1780U-B
See any errors on this page?
Please let us know.

Alternative Views:
Advantech 8ch Counter/Timer Card w/TTL DIO
ESP Price: $425.00
Contact us for Partner Pricing. (more info)


Free Shipping
Availability: Usually Ships in 24 Hours; However, Due To Shortages Contact Sales to Verify
Product Code: PCI-1780U-B

Description Technical Specs Drivers & Downloads

PCI-1780U is a general purpose multi-channel counter/timer PCI card. It targets the AM9513 to implement the counter/timer function by FPGA. It provides eight 32-bit counter
channels, 8 digital outputs and 8 digital inputs. Its powerful counter functions cater to a broad range of industrial and laboratory applications.
The card features 6 programmable counter modes, to provide one shot output, PWM output, periodic interrupt output, time-delay output, and to measure the frequency and the pulse
width. The PCL-10168 shielded cable works well with PCI-1780U to reduce noise. Its wires are all twisted pairs, and the input signals and output signals are separately shielded,
providing minimal cross talk between signals and the best protection against EMI/EMC problems.
Features
  • 8 independent 16-bit counters
  • 8 programmable clock source
  • 8 digital TTL outputs and
  • 8 digital TTL inputs
  • Up to 20 MHz input frequency
  • Multiple counter clock source selectable
  • Counter output programmable
  • Counter gate function
  • Flexible interrupt source select
  • BoardID™ switch
