PCIE-1816H-B

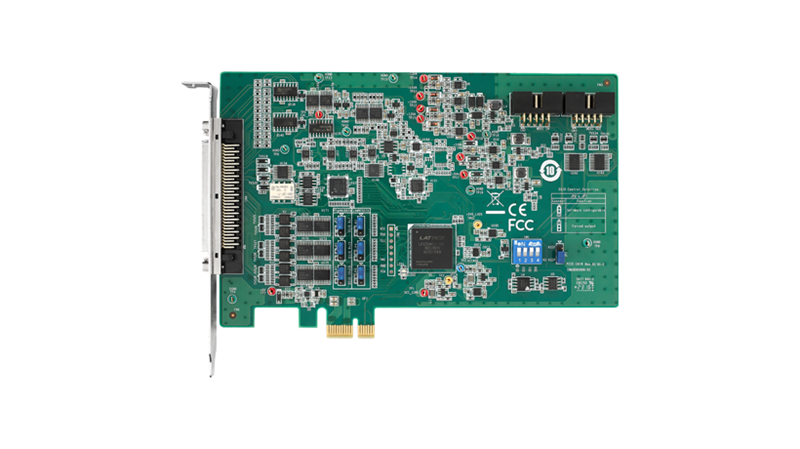

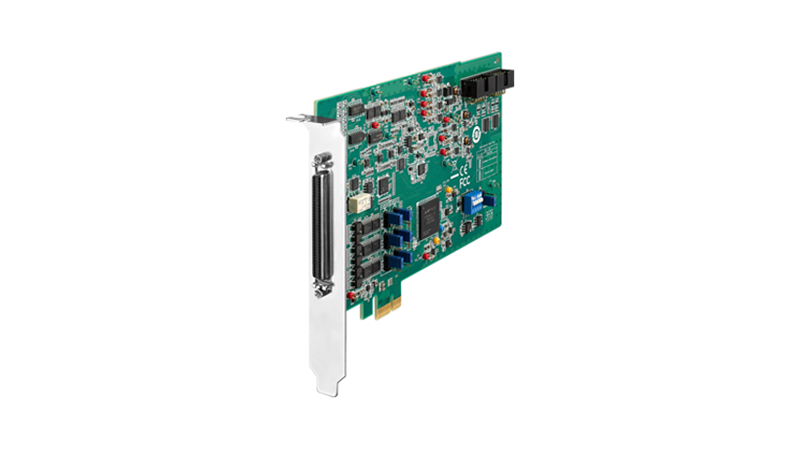

Advantech PCIE-1816H-B
See any errors on this page?
Please let us know.

Alternative Views:
Advantech 16ch, 16bit, 5MS/s PCIE Multifunction Ca
ESP Price: $862.00
Contact us for Partner Pricing. (more info)


Free Shipping
Availability: Usually Ships in 24 Hours; However, Due To Shortages Contact Sales to Verify
Product Code: PCIE-1816H-B

Description Technical Specs Drivers & Downloads

PCIE-1816/1816H is a 16-ch (up to 5 MS/s) multifunction DAQ card with integrated digital I/O, analog I/O, and counter functions. PCIE-1816/1816H also features analog and digital
triggering support, 2-ch 16-bit analog outputs with waveform generation capability, 24-ch programmable digital I/O lines, and two 32-bit general purpose timer/counters.
Features
  • 16 analog inputs, up to 5 MS/s, 16-bit resolution
  • 2 analog outputs up to 3 MS/s, 16-bit resolution
  • Support Analog and Digital Trigger for AI/O
  • Support Waveform generation for AO
  • 24 programmable digital I/O lines
  • Two 32-bit programmable counter/timers
  • Onboard FIFO memory (8k samples)
  • Support for Microsoft Windows 10/11 and Linux
