PCIE-1810-B

Advantech PCIE-1810-B
See any errors on this page?
Please let us know.

Alternative Views:
Advantech 16ch, 12bit, 800kS/s PCIE Multifunction
ESP Price: $418.00
Contact us for Partner Pricing. (more info)


Free Shipping
Availability: Usually Ships in 24 Hours; However, Due To Shortages Contact Sales to Verify
Product Code: PCIE-1810-B

Description Technical Specs Drivers & Downloads

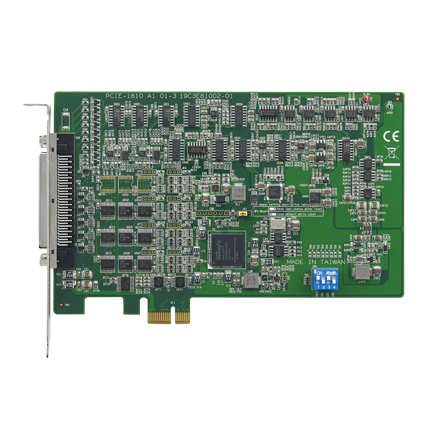

PCIE-1810 is a multifunction PCI Express card that includes digital I/O, analog I/O, and counter functions. The card also features a 800 kS/s 12-bit A/D converter and supports
analog triggers for A/D data acquisition.
Features
  • 16 analog inputs, up to 800 KS/s, 12-bit resolution
  • 2 analog outputs, up to 500 KS/s, 12-bit resolution
  • Support for digital trigger and analog trigger
  • 24 programmable digital I/O lines
  • Two 32-bit programmable counter/timers
  • Onboard FIFO memory ( 4 K samples)
