EKI-2711PSI-A

Advantech EKI-2711PSI-A
See any errors on this page?
Please let us know.

Alternative Views:

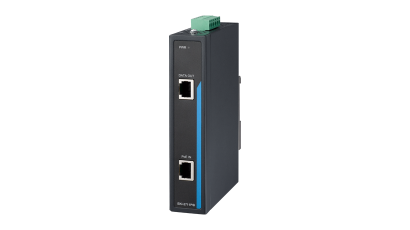

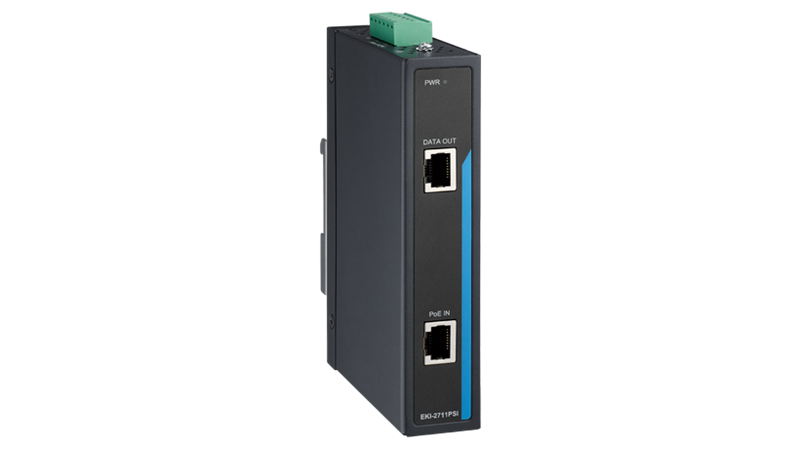

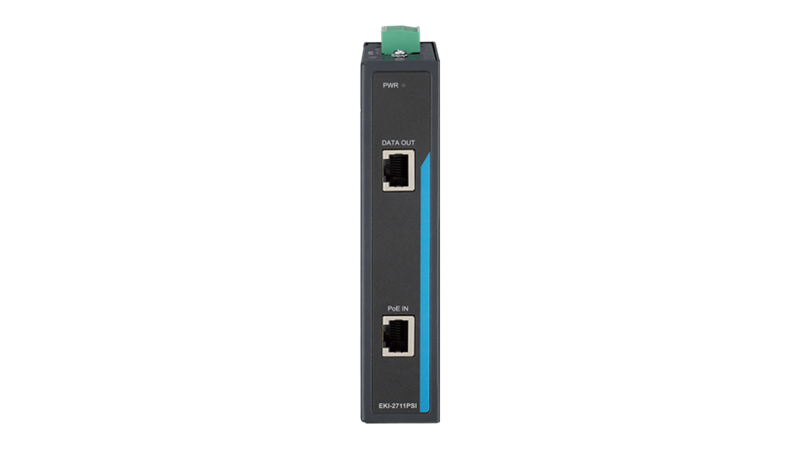

Advantech Industrial 25W PoE splitter
ESP Price: $194.00
Contact us for Partner Pricing. (more info)


Free Shipping
Availability: Usually Ships in 24 Hours; However, Due To Shortages Contact Sales to Verify
Product Code: EKI-2711PSI-A

Description Technical Specs Drivers & Downloads

PoE splitter is powered by PoE and can split PoE input into individual power output and data output. This device can easily connect legacy devices like IP cameras or WiFi Access
Points to a PoE network architecture and also work as a power supply to power up devices where power is beyond coverage as alternative power source to save cabling deployment cost.
EKI-2711PSI plays the role of powered device (PD) and splits power from PoE to Ethernet devices. In this case, both power and data can be transmitted up to 328 feet (100m) with
one single Ethernet CAT5 cable from power source equipment (PSE) with the power up to 25 watts at 24VDC.
Features
  • Supports 10/100/1000Base-T(X) for Power over Ethernet (PoE) input and data output.
  • Delivers up to 25 watts of power while separating power and data from PoE sources.
  • Features power isolation and short-circuit protection for enhanced power output safety.
  • Wide operating temperature range: -40°C to 75°C, suitable for harsh environments

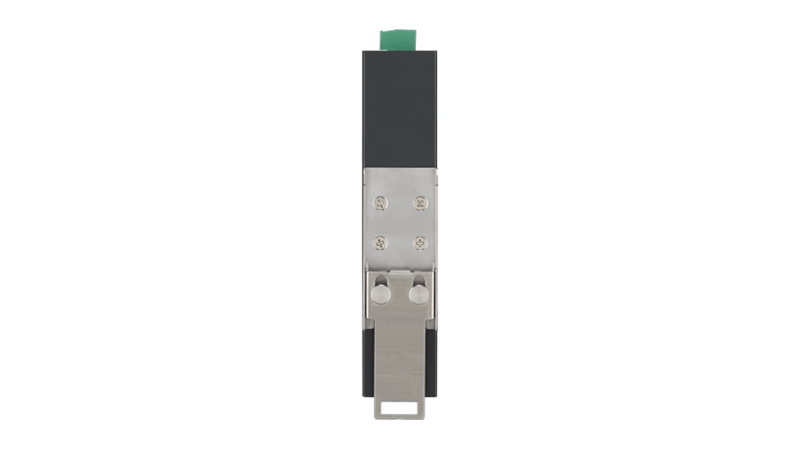

  • Equipped with a pull-down DIN rail mounting kit for easy installation across various DIN rail dimensions
