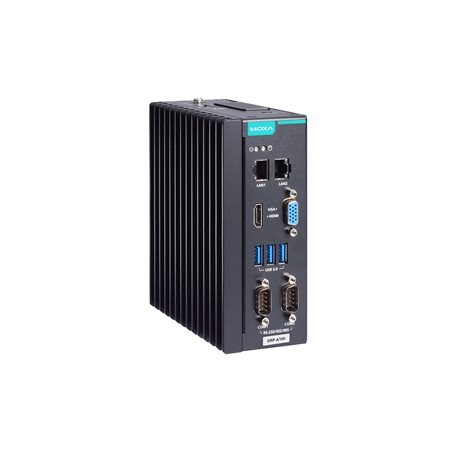

Moxa DIN-rail type Computer, Atom x6425E w/ 8GB DDR4, (2) COM, (2) LAN, (3) USB 3.0, VGA+HDMI & 12/24 VDC

ESP Price: $1,713.00

Contact us for Partner Pricing. (more info)

Availability: Usually Ships in 24 Hours; However, Due To Shortages Contact Sales to Verify
Product Code: DRP-A100-E4-T

Description

Technical Specs

Drivers & Downloads

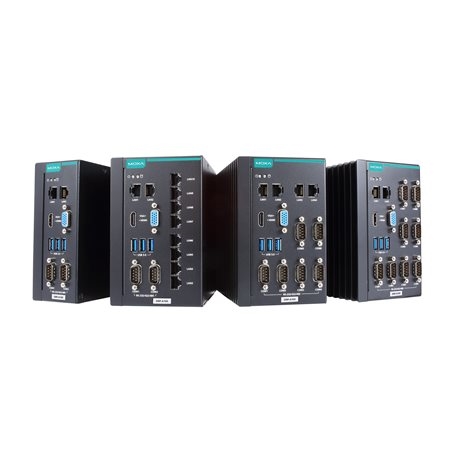

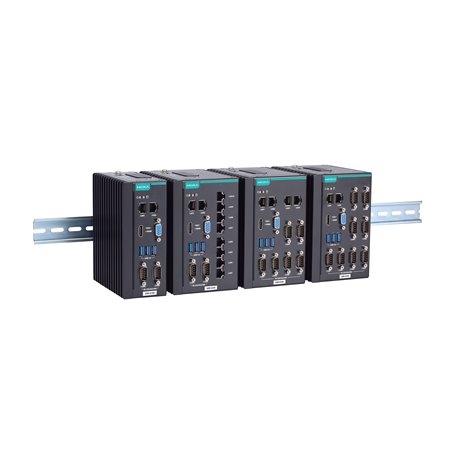

The DRP-A100 Series DIN-rail mountable computers are powered by either an Intel Atom® x6211E dual-core 1.30 GHz or an Intel Atom® x6425E quad-core 2.0 GHz processor. The computers come with a rich set of interface options including up to 8 software-selectable RS-232/422/485 serial ports and up to 10 gigabit Ethernet ports. The communication interfaces are located on the front and rear sides of the product, enabling easy access and expansion for industrial applications. A dual-storage design that includes CFast and SD slots enables easy storage expansion. A unique battery-fastener cover secures the battery in place and ensures stability in all operating environments while a trap-door design for the battery slot enables easy battery swapping without having to remove the cover. The DRP-A100 Series is a reliable, durable, and versatile yet user-friendly computing platform for industrial applications.

The DRP-A100 compact computers come in a fanless design and can withstand a temperature range of -30 to 60°C, making them a good fit for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. The DRP-A100 Series is an intelligent computing solution that perfectly fulfills both OT and IT requirements of industrial environments.
