BB-232HESP

Advantech BB-232HESP
See any errors on this page?
Please let us know.

Alternative Views:

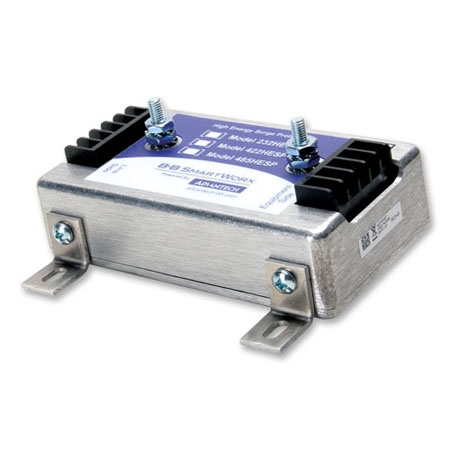

Advantech RS232 surge protector, high energy w/terminal blocks (panel mount)
ESP Price: $164.00
Contact us for Partner Pricing. (more info)


Free Shipping
Availability: Usually Ships in 24 Hours; However, Due To Shortages Contact Sales to Verify
Product Code: BB-232HESP

Description Technical Specs Drivers & Downloads

These three-stage surge protectors protect against lightning strikes and other types of voltage disturbances with three stages of protection for each line: a gas discharge tube followed by a series resistor and finally a Transient Voltage Suppresser (TVS).

The surge protectors housed in a tough metal, panel mount case with a protected signal ground connection and dedicated chassis ground lug.In order to work properly, it is important to have a good connection between the #10 screws and a solid earth ground. Two terminal posts and two metal mounting brackets provide a good ground connection.
Features
  • Three stages of protection on every data line: 1)Gas discharge tube, 2)Series resistor, 3)Transient voltage suppressor
  • Protected signal ground connection
  • Rugged terminal block connections
  • Dedicated chassis ground lug
