ADAM-250PN-A

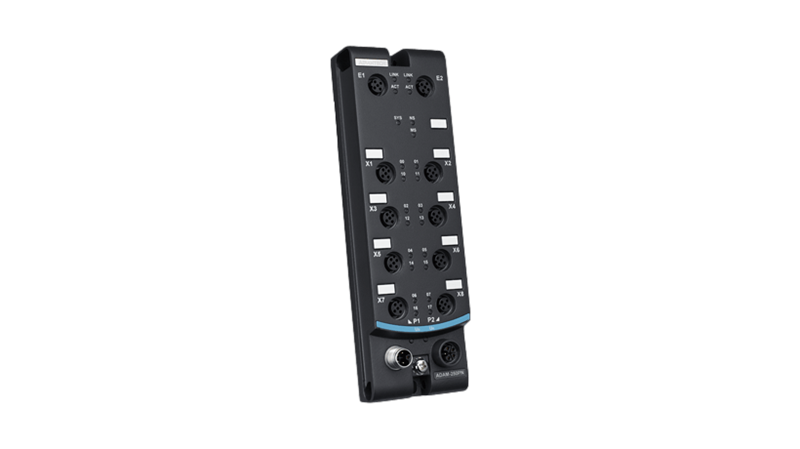

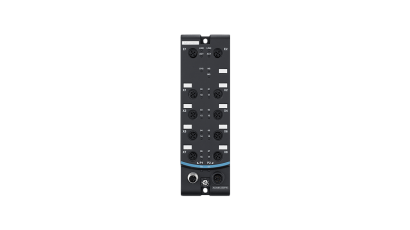

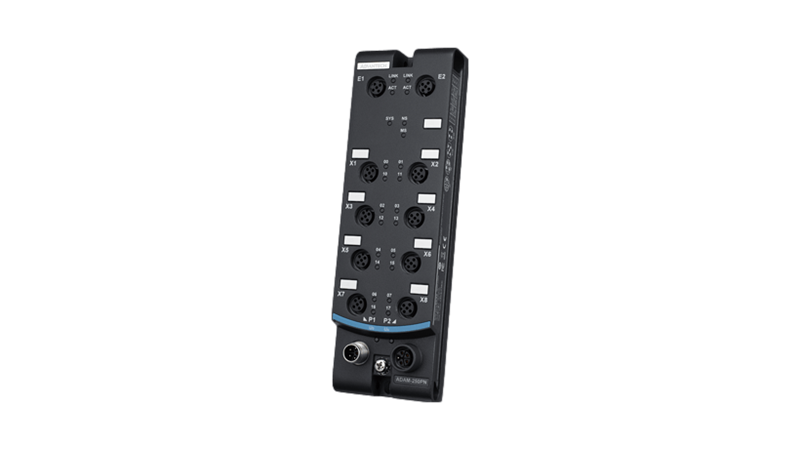

Advantech ADAM-250PN-A
See any errors on this page?
Please let us know.

Alternative Views:
Advantech 16-ch DIO M12 I/O Module
ESP Price: $565.00
Contact us for Partner Pricing. (more info)


Free Shipping
Availability: Usually Ships in 24 Hours; However, Due To Shortages Contact Sales to Verify
Product Code: ADAM-250PN-A

Description Technical Specs Drivers & Downloads

16 DI/O IP67 Machine Mount M12 PROFINET/Modbus IoT Ethernet Remote I/O
Features
  • 16-ch configurable DIO and 2-port power/ethernet daisy chain
  • IEC 61131-2 type 3 sink DI and fast response source DO
  • Support I/O and power diagnostic and DO safety value protection functions
  • Printable marking label & LED indicator monitoring system/network/diagnostic/power status
  • Enables cabinet-free front and side wall & machine mounting
  • Compatible with M12 Screw lock and Push-pull fast-locking
  • Rugged IP67 design resists EMC, vibration, dust, oil, and humidity from harsh/outdoor
  • Built in Sensor/Actuator/Encoder Power Supply from each I/O port
  • Supports PROFINET and Modbus/TCP, with extensible design for MQTT integration
