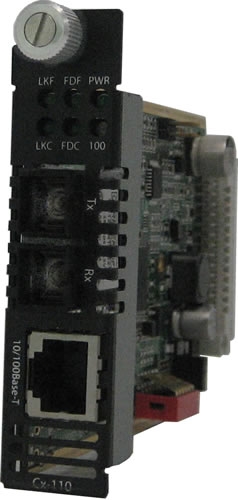

Perle C-110-S1ST20U - 10/100 Fast Ethernet Media and Rate Converter Module 10/100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-BX 1310nm TX / 1550nm RX single strand fiber, single mode (ST) [20 km/12.4 miles]
MSRP: $422.00
ESP Price: $329.16
Contact us for Partner Pricing. (more info)


Free Shipping
Availability: Usually Ships in 24 Hours; However, Due To Shortages Contact Sales to Verify
Product Code: 05041820

Description Technical Specs Drivers & Downloads

Installed in a high density Perle Media Converter Chassis, Perle's line of feature rich 10/100 Rate Converting to Fiber Media Converters transparently connect 10/100 Ethernet to fiber. Our 10/100 converters provide an economical path to extend the distance of an existing network, the life of non-fiber based equipment, or the distance between two devices.

Network Administrators can "see-everything" with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Far End Fault, and Remote Loopback. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle's 10/100 Ethernet media converter modules the smart choice for IT professionals.
Features
  • 10/100Base-TX to 100Base-X Fiber Media Converters
  • Extend network distances up to 120km
  • Advanced features - Link Pass-Through, Far-End Fault, Auto-MDIX and Loopback
  • High density applications with Perle Media Converter Chassis

Media Converter 10/100 to Fiber Features

Auto-Negotiation (802.3u) The media converter supports auto negotiation on the 10/100Base-TX interface.
Auto-MDIX Auto-MDIX (automatic medium-dependant interface crossover) detects the signaling on the UTP interface to determine the type of cable connected (straight-through or crossover) and automatically configures the connection when enabled. With Auto-MDIX enabled, either a straight-through or crossover type cable can be used to connect the media converter to the device on the other end of the cable.
Link Pass-Through With Link Pass-Through the state of the UTP receiver is passed to the fiber transmitter to make the media converter appear transparent to the end devices that are connected. In addition if Far-End Fault is enabled the media converter can turn off the 10/100Base-TX transmitter when a FAR-End Fault is received.

Using Link Pass-Through with Far-End Fault minimizes data loss when a fault occurs. Should a fault occur, the end devices have the indication of a failure available to them making trouble shooting easier.
Far-End Fault (FEF) The media converter implements the 802.3 standard for Far-End Fault for the indication and detection of remote fault conditions on the 100Base-X fiber connection. With Far-End Fault enabled the media converter transmits the Far-End Fault Indication over the 100Base-X fiber connection whenever a receive failure is detected on the 100Base-X fiber connection. The media converter continuously monitors the100Base-X fiber connection for a valid signal.

The action the media converter takes on receiving a Far-End Fault Indication is dependent on the Link Pass-Through switch setting.
Pause (IEEE 802.3xy) Pause signaling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed. The media converter supports pause negotiation on the 10/100Base-TX copper connection.
VLAN The media converter is transparent to VLAN tagged packets.
Remote LoopBack The media converter is capable of performing a loopback on the fiber port.
